產品詳細

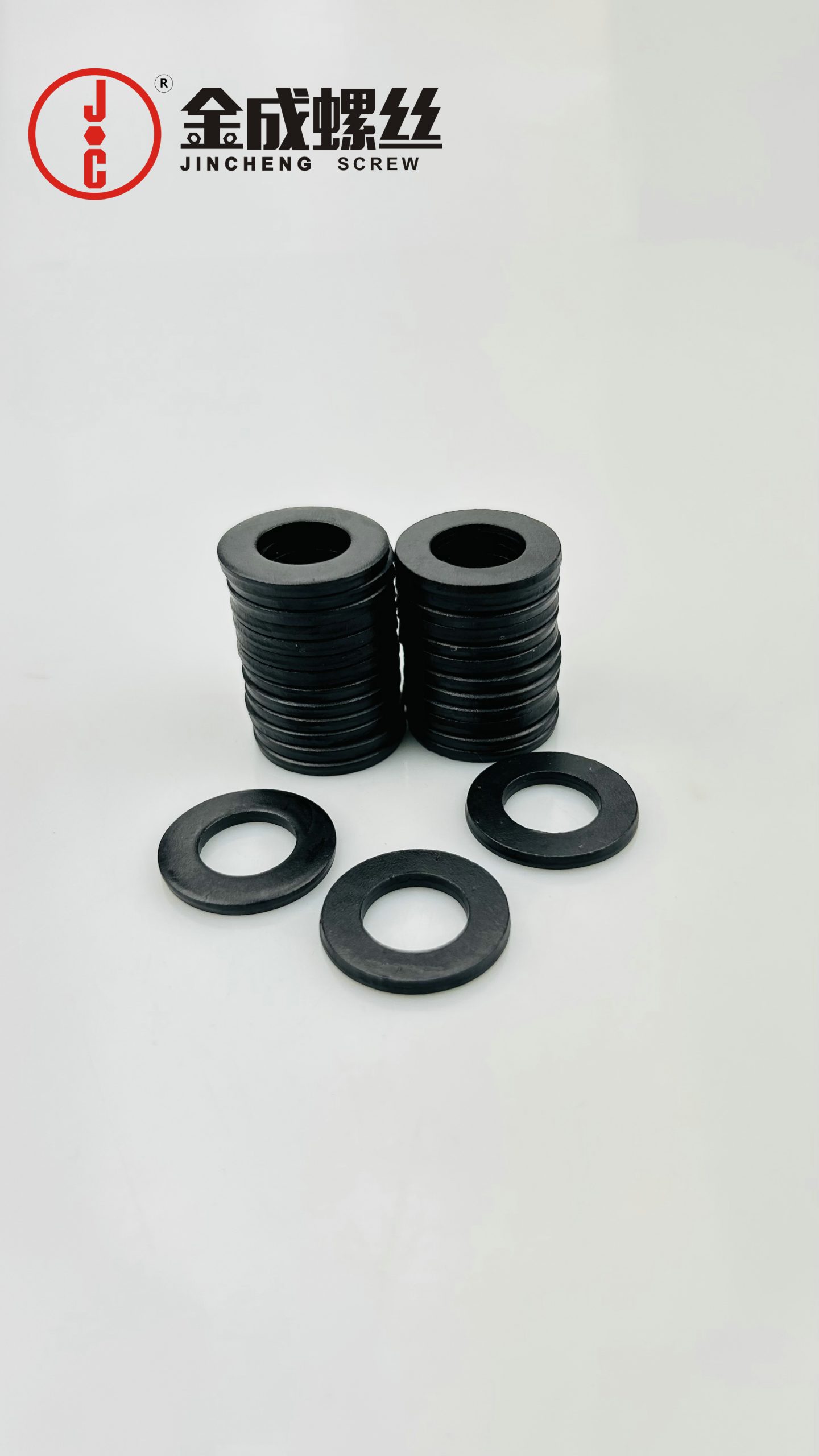

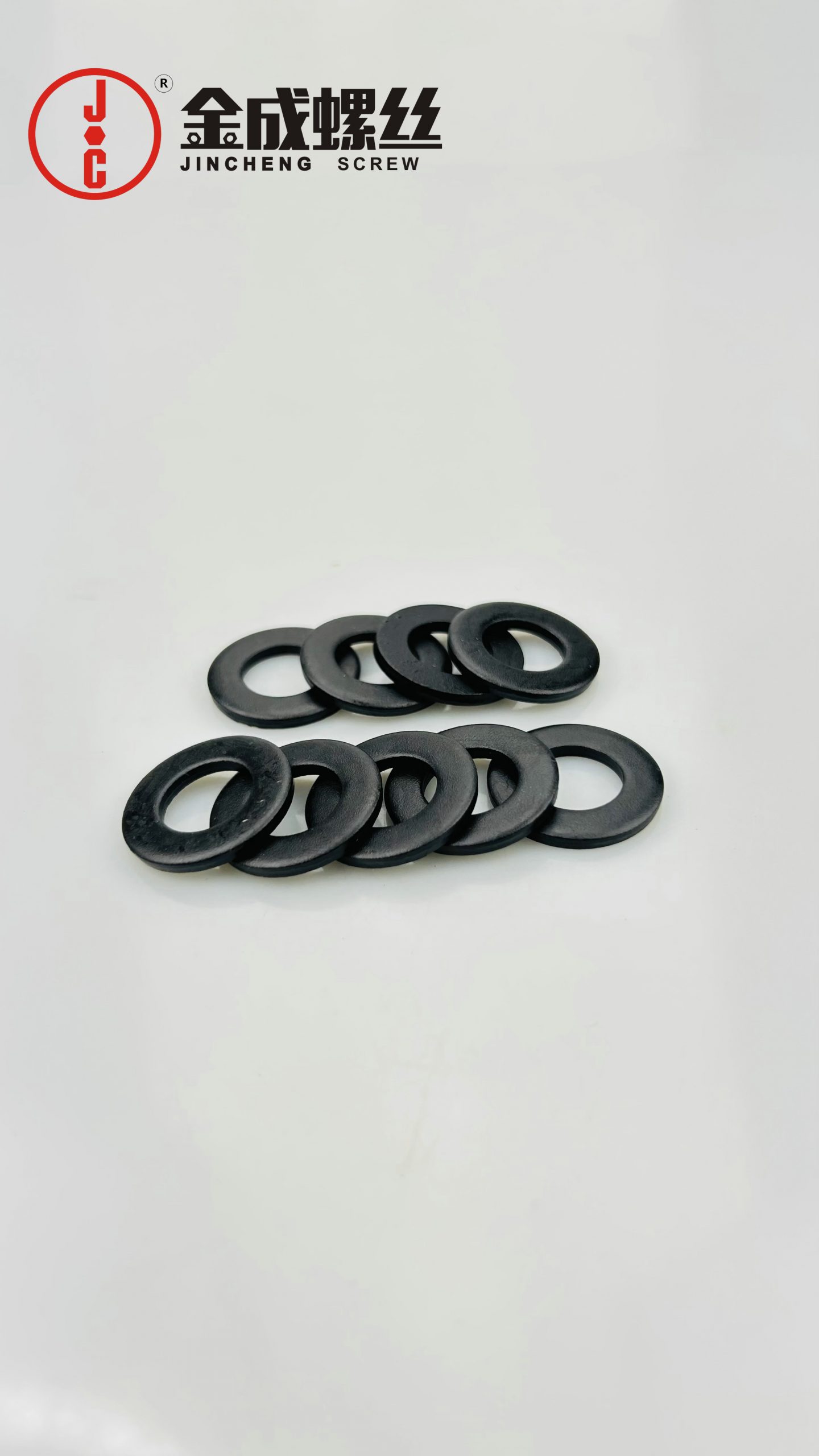

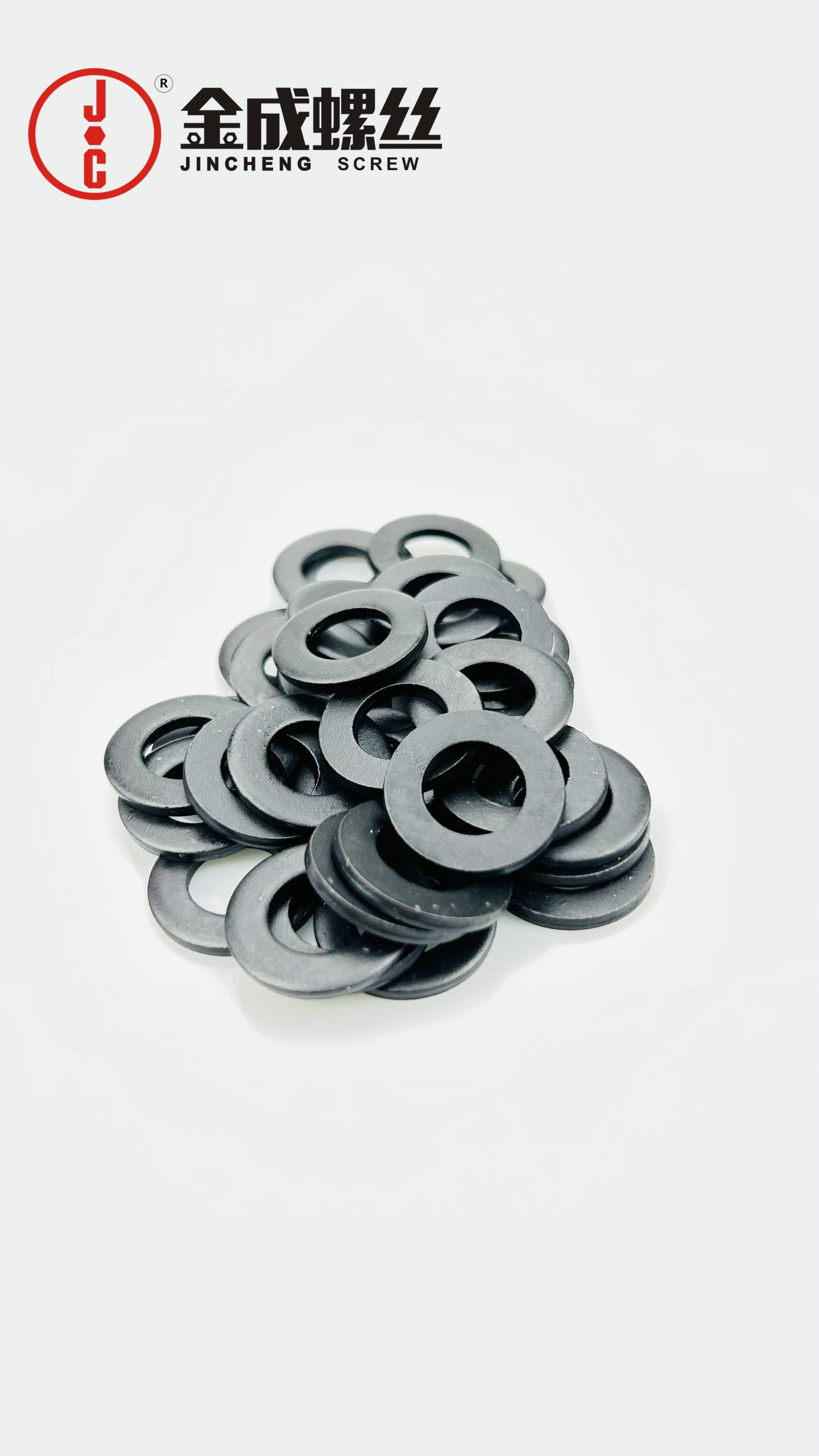

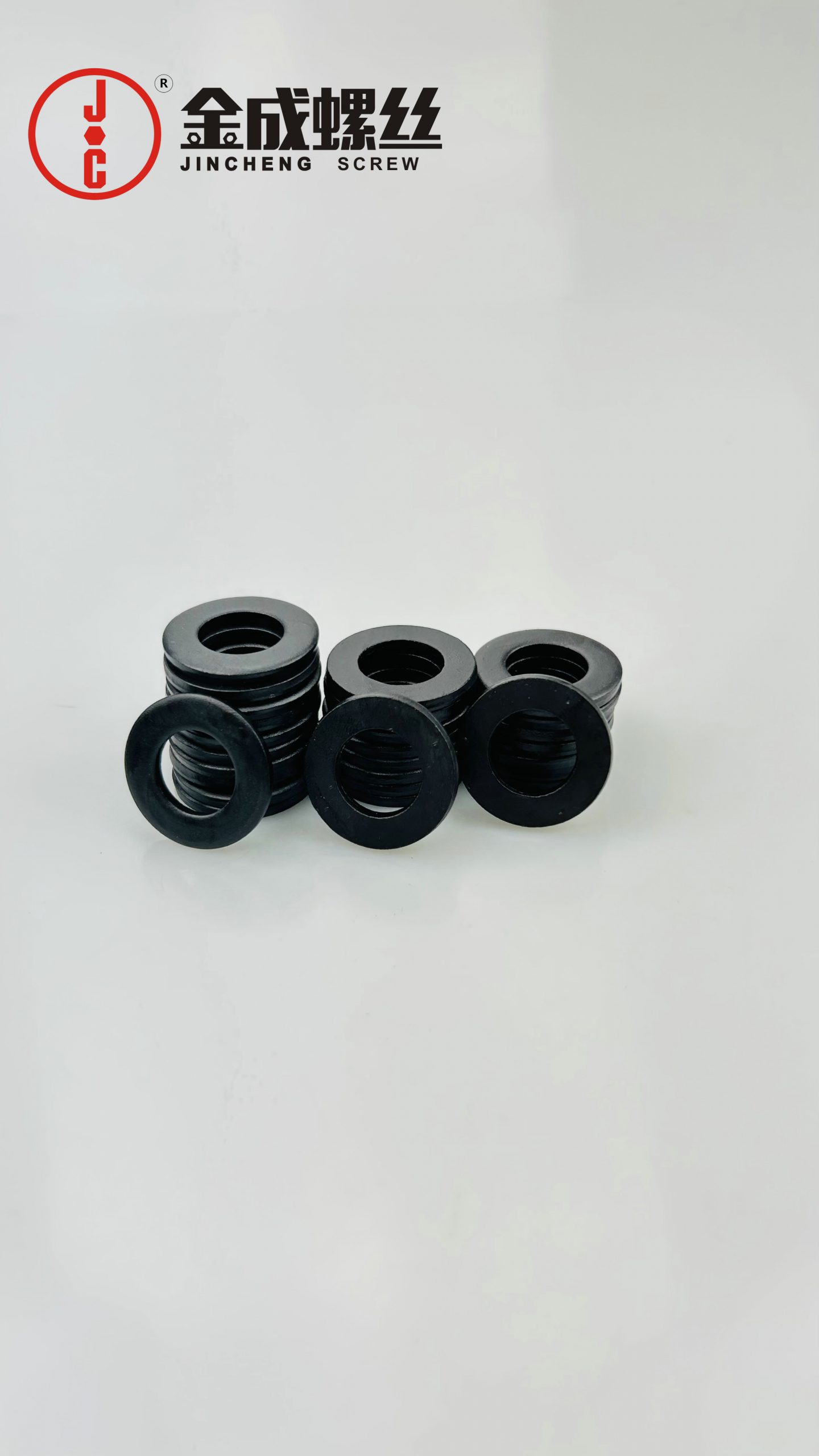

品名：高強度平墊圈、高強度墊圈、平墊圈、墊圈定制、高強度介子
金成高強度平墊圈 |
|||
| 品名 | 高強度平墊圈 | 材質 | 100HV/200HV/300HV/10級 |
| 標準 | GB97/DIN125/GB848 | 表面處理 | 發黑 |
| 尺寸 | 公制內孔直徑：M1.6~M64 | 厚度/外徑 | 符合國家標準 |
| 英美制內孔直徑：2#~2" | 包裝 | 金成膠袋/紙箱 | |
| 產品特點 | 常用高強度平墊圈均有現貨當日可發貨 / 特殊規格、尺寸、材料、表面處理均可定制 | ||
金成高強度平墊圈—公制規格表 |
|||||||
| DIN 125A—1990 A級平墊圈 | |||||||
| 內孔 直徑 d |
d--內孔 | dc--外徑 | h--厚度 | 1000支 重量KG |
|||
| 最大值 max |
最小值 min |
最大值 max |
最小值 min |
最大值 max |
最小值 min |
||
| M1.6 | 1.84 | 1.7 | 4 | 3.7 | 0.35 | 0.25 | 0.024 |
| M1.7 | 1.94 | 1.8 | 4.5 | 4.2 | 0.35 | 0.25 | 0.031 |
| M2 | 2.34 | 2.2 | 5 | 4.7 | 0.35 | 0.25 | 0.037 |
| M2.3 | 2.64 | 2.5 | 6 | 5.7 | 0.55 | 0.45 | 0.092 |
| M2.5 | 2.84 | 2.7 | 6 | 5.7 | 0.55 | 0.45 | 0.088 |
| M2.6 | 2.94 | 2.8 | 7 | 6.64 | 0.55 | 0.45 | 0.127 |
| M3 | 3.38 | 3.2 | 7 | 6.64 | 0.55 | 0.45 | 0.119 |
| M3.5 | 3.88 | 3.7 | 8 | 7.64 | 0.55 | 0.45 | 0.155 |
| M4 | 4.48 | 4.3 | 9 | 8.64 | 0.9 | 0.7 | 0.308 |
| M5 | 5.48 | 5.3 | 10 | 9.64 | 1.1 | 0.9 | 0.443 |
| M6 | 6.62 | 6.4 | 12 | 11.57 | 1.8 | 1.4 | 1.02 |
| M7 | 7.62 | 7.4 | 14 | 13.57 | 1.8 | 1.4 | 1.39 |
| M8 | 8.62 | 8.4 | 16 | 15.57 | 1.8 | 1.4 | 1.83 |
| M10 | 10.77 | 10.5 | 13.27 | 13 | 2.2 | 1.8 | 3.57 |
| M12 | 20 | 19.48 | 24 | 23.48 | 2.7 | 2.3 | 6.27 |
| M14 | 15.27 | 15 | 28 | 27.48 | 2.7 | 2.3 | 8.62 |
| M16 | 17.27 | 17 | 30 | 29.48 | 3.3 | 2.7 | 11.3 |
| M18 | 19.33 | 19 | 34 | 33.38 | 3.3 | 2.7 | 14.7 |
| M20 | 21.33 | 21 | 37 | 36.38 | 3.3 | 2.7 | 17.2 |
| M22 | 23.33 | 23 | 39 | 38.38 | 3.3 | 2.7 | 18.3 |
| M24 | 25.33 | 25 | 44 | 43.38 | 4.3 | 3.7 | 32.3 |
| M26 | 27.33 | 27 | 50 | 49.38 | 4.3 | 3.7 | 43.7 |
| M27 | 28.33 | 28 | 50 | 49.38 | 4.3 | 3.7 | 42.3 |
| M28 | 29.33 | 29 | 50 | 49.38 | 4.3 | 3.7 | 40.9 |
| M30 | 31.39 | 31 | 56 | 55.26 | 4.3 | 3.7 | 53.6 |
| M32 | 33.62 | 33 | 60 | 58.8 | 5.6 | 4.4 | 77.4 |
| M33 | 34.62 | 34 | 60 | 58.8 | 5.6 | 4.4 | 75.3 |
| M35 | 36.62 | 36 | 66 | 64.8 | 5.6 | 4.4 | 94.3 |
| M36 | 37.62 | 37 | 66 | 64.8 | 5.6 | 4.4 | 92.1 |
| M38 | 39.62 | 39 | 72 | 70.8 | 6.6 | 5.4 | 136 |
| M39 | 40.62 | 40 | 72 | 70.8 | 6.6 | 5.4 | 133 |
| M40 | 41.62 | 41 | 72 | 70.8 | 6.6 | 5.4 | 130 |
| M42 | 43.62 | 43 | 78 | 76.8 | 8 | 6 | 183 |
| M45 | 46.62 | 46 | 85 | 83.6 | 8 | 6 | 220 |
| M48 | 50.62 | 50 | 92 | 90.6 | 9 | 7 | 294 |
| M50 | 52.74 | 52 | 92 | 90.6 | 9 | 7 | 284 |
| M52 | 54.74 | 54 | 98 | 96.6 | 9 | 7 | 330 |
| M55 | 57.74 | 57 | 105 | 103.6 | 10 | 8 | 431 |
| M56 | 58.74 | 58 | 105 | 103.6 | 10 | 8 | 425 |
| M58 | 60.74 | 60 | 110 | 108.6 | 10 | 8 | 472 |
| M60 | 62.74 | 62 | 110 | 108.6 | 10 | 8 | 458 |
| M64 | 66.74 | 66 | 115 | 113.6 | 10 | 8 | 492 |
| M68 | 70.74 | 70 | 120 | 118.6 | 11 | 9 | 586 |
| M72 | 74.74 | 74 | 125 | 123.4 | 11 | 9 | 626 |
| M76 | 78.74 | 78 | 135 | 133.4 | 11 | 9 | 749 |
| M80 | 82.87 | 82 | 140 | 138.4 | 13.2 | 10.8 | 953 |
| M85 | 87.87 | 87 | 145 | 143.4 | 13.2 | 10.8 | 996 |
| M90 | 93.87 | 93 | 160 | 158.4 | 13.2 | 10.8 | 1250 |
| M95 | 98.87 | 98 | 163.4 | 165 | 13.2 | 10.8 | 1300 |
| M100 | 104.87 | 104 | 175 | 173.4 | 15.2 | 12.8 | 1710 |
| M105 | 109.87 | 109 | 180 | 178.4 | 15.2 | 12.8 | 1770 |
| M110 | 114.87 | 114 | 185 | 183.15 | 15.2 | 12.8 | 1830 |
| M115 | 119.87 | 119 | 200 | 198.15 | 15.2 | 12.8 | 2230 |
| M120 | 125 | 124 | 210 | 208.15 | 17.2 | 14.8 | 2830 |
| M125 | 130 | 129 | 220 | 218.15 | 17.2 | 14.8 | 3130 |
| M130 | 135 | 134 | 220 | 218.15 | 17.2 | 14.8 | 3000 |
| M135 | 140 | 139 | 230 | 228.15 | 17.2 | 14.8 | 3310 |
| M140 | 145 | 144 | 240 | 238.15 | 19.2 | 16.8 | 4090 |
| M145 | 150 | 149 | 250 | 248.15 | 19.2 | 16.8 | 4470 |
| M150 | 156 | 155 | 250 | 248.15 | 19.2 | 16.8 | 4270 |
| M160 | 166 | 165 | 250 | 248.15 | 19.2 | 16.8 | 3910 |
金成高強度平墊圈—美制規格表 窄型 |
||||||
| ASME/ANSI B18.22.1-1A-1998 A型平墊圈(N)表1A | ||||||
| 內孔 直徑 d |
d--內孔 | dc--外徑 | h--厚度 | |||
| 最大值 max |
最小值 min |
最大值 max |
最小值 min |
最大值 max |
最小值 min |
|
| 6# | 0.164 | 0.151 | 0.39 | 0.37 | 0.065 | 0.036 |
| 8# | 0.196 | 0.183 | 0.453 | 0.433 | 0.065 | 0.036 |
| 3/16 | 0.227 | 0.214 | 0.515 | 0.495 | 0.065 | 0.036 |
| 10# | 0.265 | 0.245 | 0.577 | 0.557 | 0.065 | 0.036 |
| 12# | 0.265 | 0.245 | 0.577 | 0.557 | 0.08 | 0.051 |
| 1/4 | 0.296 | 0.276 | 0.64 | 0.62 | 0.08 | 0.051 |
| 5/16 | 0.359 | 0.339 | 0.703 | 0.681 | 0.08 | 0.051 |
| 3/8 | 0.421 | 0.401 | 0.827 | 0.805 | 0.08 | 0.051 |
| 7/16 | 0.484 | 0.464 | 0.937 | 0.915 | 0.08 | 0.051 |
| 1/2 | 0.546 | 0.526 | 1.092 | 1.055 | 0.121 | 0.074 |
| 9/16 | 0.609 | 0.589 | 1.186 | 1.149 | 0.121 | 0.074 |
| 5/8 | 0.686 | 0.649 | 1.342 | 1.305 | 0.121 | 0.074 |
| 3/4 | 0.842 | 0.805 | 1.499 | 1.462 | 0.16 | 0.108 |
| 7/8 | 0.968 | 0.931 | 1.78 | 1.743 | 0.16 | 0.108 |
| 1" | 1.092 | 1.055 | 2.03 | 1.993 | 0.16 | 0.108 |
| 1-1/8 | 1.28 | 1.243 | 2.28 | 2.243 | 0.16 | 0.108 |
| 1-1/4 | 1.405 | 1.368 | 2.53 | 2.493 | 0.192 | 0.136 |
| 1-3/8 | 1.53 | 1.493 | 2.78 | 2.743 | 0.192 | 0.136 |
| 1-1/2 | 1.655 | 1.618 | 3.03 | 2.993 | 0.192 | 0.136 |
| 1-5/8 | 1.795 | 1.74 | 3.795 | 3.74 | 0.213 | 0.153 |
| 1-3/4 | 1.92 | 1.865 | 4.045 | 3.99 | 0.213 | 0.153 |
| 1-7/8 | 2.045 | 1.99 | 4.295 | 4.24 | 0.213 | 0.153 |
| 2" | 2.17 | 2.115 | 4.545 | 4.49 | 0.213 | 0.153 |
| 2-1/4 | 2.42 | 2.365 | 4.795 | 4.74 | 0.248 | 0.193 |
| 2-1/2 | 2.67 | 2.615 | 5.045 | 4.99 | 0.28 | 0.21 |
| 2-3/4 | 2.94 | 2.865 | 5.315 | 5.24 | 0.31 | 0.228 |
| 3" | 3.19 | 3.115 | 5.565 | 5.49 | 0.327 | 0.249 |
